6" AIR CYLINDER

$1,470.66
SKU# CYL6X30CP

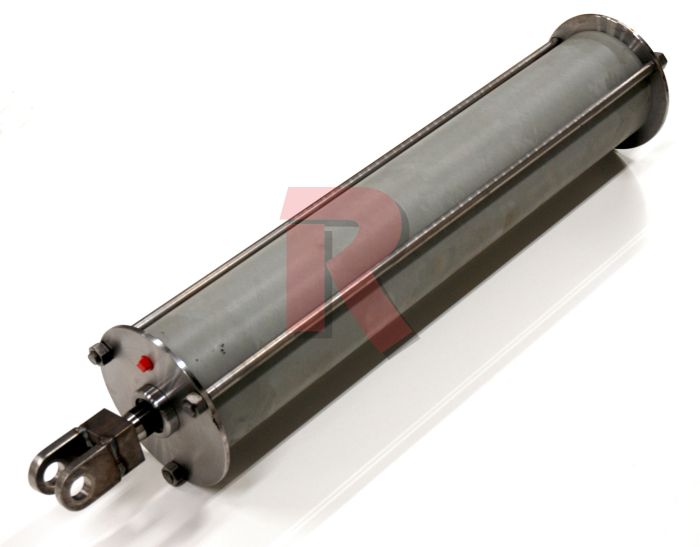

The Ranco 6” Air Cylinder (SKU:CYL6X30CP) is a pneumatic cylinder used to control pistons that open and close gates on a bottom dump/belly trailer. This durable and element resistant cylinder integrates with your trailer’s air control system to allow seamless use of gate functions to simplify your life. By utilizing this high performance pneumatic Ranco cylinder, your trailer will be capable of operating the bottom dump gate with ease from the cab. Ranco knows the rigorous demands of dumping operations that comes with the commercial trailer hauling world, so this 6” air cylinder was made with a composite barrel that includes a durable structure for those heavy loads. Shop for your replacement cylinder from The Ranco Parts Store today!

https://parts.ranco.com/checkout/cart/add/uenc/aHR0cHM6Ly9wYXJ0cy5yYW5jby5jb20vNi1haXItY3lsaW5kZXItcGFydC1udW1iZXItY3lsNngzMGNw/product/3982/

Part Specifications

6" AIR CYLINDER 6X30 - 39-7/8 - RANCO

UTILIZES A COMPOSITE BARREL

USED TO OPEN/CLOSE THE GATES ON A BOTTOM DUMP

UTILIZES TIE BOLTS TO HOLD THE CYLINDER TOGETHER

RELIES ON TRUCK'S AIR SYSTEM FOR OPERATION

6" DIAMETER

30" STROKE

1 3/8" ROD

REPLACEMENT SEAL KIT PART NUMBER: 6PSK, F1002

EXHAUST VALVES PART NUMBER: X2 PER CYLINDER, EV25A2 (3/8 NPT)

CLEVIS PINS ARE NOT INCLUDED WITH THIS CYLINDER

CLEVIS PIN PART NUMBER: 650-120 (PIN) CLIP: MP5-0239-8

If your commercial bottom dump trailer’s gate has recently failed, the connection has faltered or for whatever reason the functionality of the gate itself no longer works, it might be time to order a replacement air cylinder. As always, be sure to confirm this exact cylinder SKU and measurement fits your belly dump trailer before purchasing. If you need help finding the right part, give our team a call.

The Ranco cylinder measures 6” in diameter and 30” long for maximum air power and utilizes tie bolts to hold the whole system together. Ensure that your trailer must have an existing air system installed before integrating an air cylinder like this Ranco 6” air cylinder since it is simply a piece to the whole air system, as pictured in the diagram above. Please note, clevis pins are not included with this cylinder, but can be purchased from Ranco with the part number: 650-120 (PIN) CLIP: mp5-0239-8.

Return Policy: Parts cannot be returned without an invoice. Absolutely no returns are allowed on electrical parts or on special orders. All items must be returned in the original undamaged packaging. Material returned may be subject to a 20% restocking fee. No returns are allowed after 30 days (including cores). For questions or clarifications, call us at (888) 424-4003.

Don't forget to shop our CUSTOM CYLINDER section!

More Information
Box Size 49"X13"X13"
Country of Origin USA
Diameter 6"
Finish Matte
Material Steel/Composite
Package Quantity 1
Function 6" cylinder used on the ranco belly dump trailers to open the gates; commonly seen on pup trailers.
Replacement Parts REPLACEMENT SEAL KIT PART NUMBER: 6PSK, F1002 EXHAUST VALVES PART NUMBER: X2 PER CYLINDER, EV25A2 (3/8 NPT). CLEVIS PIN PART NUMBER: 650-120 (PIN) CLIP: MP5-0239-8
Barrel Bore 6"
Clevis Pin Size 1"
Rod Size 1 3/8"
Stroke 30"
