PILOT VALVE

$126.28
SKU# K71EA00KS6KA2

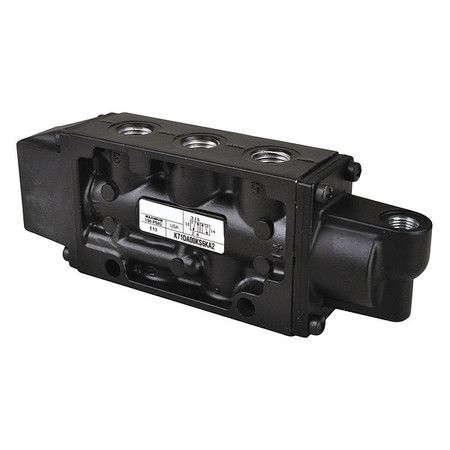

This Norgren port pilot valve was specially designed for the pilot function of 3-Way & 4-Way pneumatic directional control valves. It is commonly used on suspension systems to control auxiliary axles, like drop axles. If you need to replace this specific part of your suspension system, this pilot valve is top of the line. Available in plate mount, the operators are interchangeable with most solenoid operator interfaces. Sealing discs are spring compensated. Shading ring is standard so that both AC and DC coils can be used on all armatures. Coils are Glass-Filled Nylon encapsulated.

IMI Norgren's V60 Series in-line directional control valves are designed for high flow rates from 500 to 2600 L/min, and are designed for compressed air filtered to 50 mic, lubricated or non-lubricated, with a maximum rating of 145 PSI and an ambient temperature of 14 F to 122 F. The housing and baseplate are made from aluminum, static and dynamic seals are NBR, screws are zinc plated, and springs and spools are stainless steel. The ingress protection class is IP65 and the low power 2W solenoids are rated for continuous duty. An abundance of choices include 3/2, 5/2, and 5/3 air or solenoid pilot operation, 24 VDC or 120 VAC , port size (1/8", 1/4", and 3/8"), and many connector and cable options. Valves can be mounted individually or on a fixed length manifold.



FEAUTRES:

  • High Flow Rate at Small Size
  • Flow direction: Internal pilot supply: fixed
  • External pilot supply: optional
  • Medium: Compressed air, filtered to 50 μm, lubricated or non-lubricated.
  • Operation: Solenoid pilot or air pilot
  • Mounting: Individual or fixed length manifold
  • Manifold System with Easy Assembly
  • Low Power Consumption
  • Long Life and Maintenance Free



PORT VALVE DETAILS:

  • Use: Controls Auxiliary Axles (drop axles) in trailer suspension systems.
  • Port Sizes:
    • 3/8" NPT ports
    • 1/8" pilot port
  • Operator: Large Air
  • Operating pressure: 10" HG – 150
  • 35-150 Pilot pressure
More Information
Color Black
Box Size 6"X6"X6"
Country of Origin USA
Finish Matte
Material Aluminum
Package Quantity 1
Connections 3/8" NPT ports 1/8" pilot port
Duty N/A
Flow C N/A
Flow Rating 35-150 Pilot pressure
Function Commonly used on suspensions systems to control auxillary axles; normally drop axles.
Operating Temperature Range N/A
Operation Commonly used on suspensions systems to control auxillary axles.
Power N/A
Pressure Operating pressure 10" HG - 150
Product Line Norgren
Replacement Parts N/A
Voltage N/A
