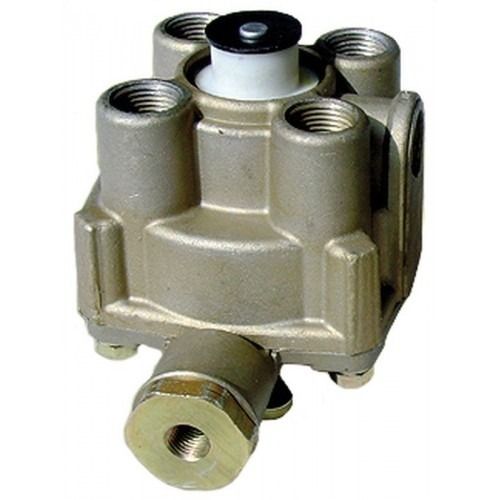

VERTICAL R14 RELAY VALVE

Call to Order

SKU# 103028

Piston operated with 4 delivery ports

Commonly used for service or parking brakes

Vertical Relay Valve:

Piston operated with 4 delivery ports

Commonly used for service or parking brakes

4 PSI crack pressure

3/8" vertical delivery ports

1/2" supply ports

1/4" service port

More Information
Box Size	12"X12"X7"
Country of Origin	USA
Finish	Matte
Material	Aluminum/Brass
Package Quantity	1
Connections	3/8" vertical delivery ports 1/2" supply ports 1/4" service port
Duty	N/A
Flow C	N/A
Flow Rating	N/A
Function	Relay valves are primarily used on long wheelbase vehicles to apply and release rear axle(s) service or parking brakes. They are air operated, graduating control valves of high capacity and fast response.
Operating Temperature Range	N/A
Operation	Piston operated with 4 delivery ports. Commonly used for service or parking brakes.
Power	N/A
Pressure	4 PSI Max (Crack Pressure)
Product Line	Bendix
Replacement Parts	N/A
Voltage	N/A
