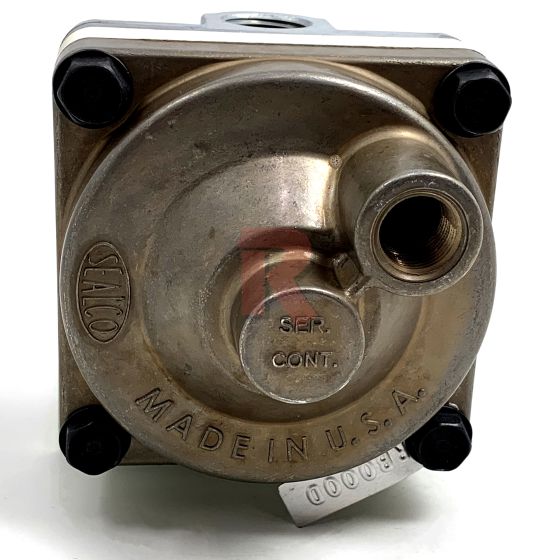

CONTROL LINE VALVE FOR DOLLIES AND TURNTABLE AXLES

Call to Order

SKU# 110570

ControI Line Valve: Primarily used on dollies and turnable axles on pull, transfer and B-train type trailers.

The dolly port of the control line valve is plumbed to the relay emergency valve or ABS ECU to control the service brakes

ControI Line Valve: Primarily used on dollies and turnable axles on pull, transfer and B-train type trailers.

The dolly port of the control line valve is plumbed to the relay emergency valve or ABS ECU to control the service brakes

3/8" Control port size

1/2" Reservoir port size

3/8" Dolly port size

3/8" Delivery port size

Provides a balanced control line signal for uniform braking of mulit-axle combination vehicles

Prevents premature braking of the steerable axle(s) in combination vehicles for maximum lateral stability while stopping

Improves the release of service brakes in the tractor/trailer combination eliminating trailer brake drag complaints

More Information
Box Size	12"x12"x7"
Country of Origin	USA
Finish	Matte
Material	Aluminum
Package Quantity	1
Connections	3/8" Control port size 1/2" Reservoir port size 3/8" Dolly port size 3/8" Delivery port size
Duty	N/A
Flow C	N/A
Flow Rating	N/A
Function	Primarily used on dollies and turnable axles on pull, transfer and B-train type trailers.
Operating Temperature Range	N/A
Operation	Regulates air pressure to the air brakes on dollies, turnable drop axles, drop axles, and trailers not affected by hard braking ratios.
Power	N/A
Pressure	N/A
Product Line	Sealco
Replacement Parts	N/A
Voltage	N/A
