GATE VALVE

$752.67
SKU# VGK-4523-20C-D012

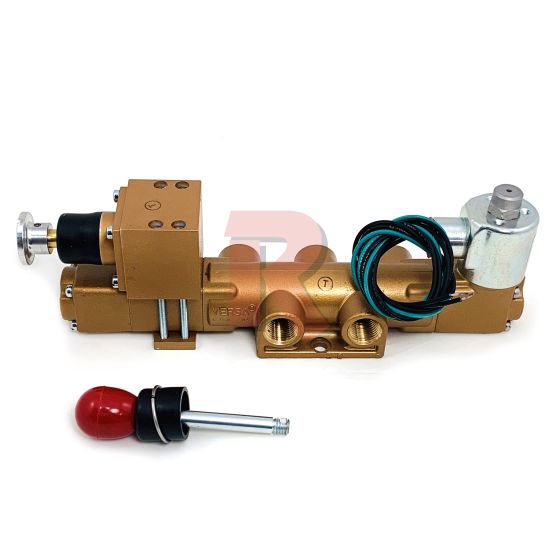

The Versa Four Way Bottom Dump Valve (SKU:VGK-4523-20C-D012),  manufactured by Versa Valves, is the solution for hopper and gate control on your bottom dump trailer. Featuring both 2 position solenoid control, as well as 3 position manual control, this resilient gate control valve utilizes air spring technology to remove the possibility of a mechanical spring failure. This specific 4-way valve’s dust-proof, bubble-tight seal provides a clog resistant and leak-free system so your commercial trailer’s dumping abilities stay seamless. Order this replacement Versa Valve to recreate that brand new gate control functionality and provide a durable and long lasting solution for your bottom dump trailer’s dumping control system. Be sure to confirm this SKU fits your trailer model prior to ordering.

A 4-way Versa Valve is commonly used on Ranco bottom dump trailers to operate the gates. This replacement part has a manual handle function as well as a solenoid to activate the valve via a switch in the cab for remote dump operation. It’s 100% factory tested at an ISO 9001 certified facility by Versa Valves, so you can trust all parts made by this manufacturer. See below for part functionality and warranty details:

How to Operate: To manually operate this valve, the solenoid must be electrically de-energized and the air spring section depressurized by depressing the palm button (this button is spring loaded and will reset itself). To pressurize port ‘B’ and exhaust port ‘A,’ move the hand lever toward the valve body. To pressurize port ‘A’ and exhaust port ‘B’, move the hand lever away from the valve body. To block all valve ports, move the lever midway between the two pressured positions noted above. The valve will remain in any one of the set 3 positions until either the lever is manually re-positioned or solenoid is energized.

Manufacturer’s Warranty: Versa’s Series products are warranted to be free from defective material and workmanship for a period of ten years from the date of manufacture, provided said products are used in accordance with Versa specifications. Versa’s liability pursuant to that warranty is limited to the replacement of the Versa product proved to be defective provided the allegedly defective product is returned to Versa or its authorized distributor. Versa provides no other warranties, expressed or implied, except as stated above. There are no implied warranties of merchantability or fitness for a particular purpose. Versa’s liability for breach of warranty as herein stated is the only and exclusive remedy and in no event shall Versa be responsible or liable for incidental or consequential damages.

Order this four way bottom dump Versa Valve from The Ranco Parts Store today, or contact us for any assistance.

More Information
Box Size 13"X6"X5"
Country of Origin USA
Finish Matte
Material Body: Brass Seals: Nitrile Coil: Epoxy molded Solenoid enclosure: Carbon steel, chromate coated
Package Quantity 1
Connections ½” NPT ports ½” NPT electrical conduit, solenoid leads are not polarity dependent
Duty Continuous duty coil
Flow C 4
Flow Rating N/A
Function 4-Way, 2 and 3 position
Operating Temperature Range N/A
Operation Electric Solenoid Operation, Manual Dump Operation with Handle
Power 9.4 Watts
Pressure 50 to 175 psi
Product Line Versa Valves V Series Pneumatics
Replacement Parts P-1002-02-D012, V-4512-KP-20B
Voltage 12V DC

Trouble Free Series “V” Bottom Dump Control Valves

Trouble free for years despite exposure to heat, cold, dirt and vibration. Used as a “Bottom dump” valve for hopper control on bottom dump trailers or railroad coal cars.

  • Standard “Bottom Dump” operation provides both 2 position solenoid control and 3 position manual control in one valve.
  • 1/2 inch NPT full flow construction.
  • Bubble-tight seals provide leak free service for “creep free” hopper control.
  • Withstands impact with thick walled forged brass construction. ‘i Part # * VGK-4533-20B-D012/
  • Prevents contamination from dirt and sand M-450-APN-20M with Versa proven dust proof option keeping solenoid and main valve free from clogging.
  • Solenoid actuators utilize ’solenoid-pilot” design, no coil burn-out due to valve hang up.
  • Main spring is “air spring,” no mechanical spring to break or fail.

Use of “solenoid-pilot” and “air spring” Part # a assure positive shift every time! Quick removal of valve with plug-in solenoid option. Standard ‘0’ ring seals make repair easy!

•  Economical space saving “in line” version available.

  • 100% factory tested at ISO 9001 certified facility.
  • Supported by established worldwide distributor network.
