PUSH/PULL VALVE
Call to Order
SKU# 288239P

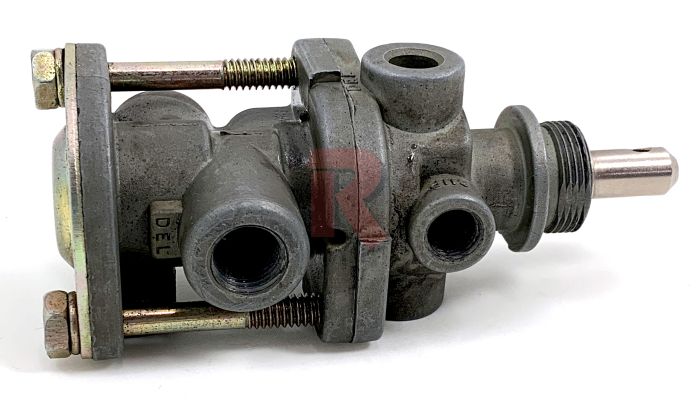

The PP-7 push-pull control valve is a pressure sensitive, on/off control valve which will automatically return to the exhaust (button out) position when supply pressure is below the required minimum.
Push/Pull Valve: The PP-7 push-pull control valve is a pressure sensitive, on/off control valve which will automatically return to the exhaust (button out) position when supply pressure is below the required minimum.
The automatic exhaust pressure is 40 PSI
1 qty Delivery Ports - 1/4" PT
1 qty Supply (inlet) Ports - 1/8" PT
1 qty Control Ports - 1/8" PT
1 qty Exhaust Port - 1/4" PT
Normal Pressure - 115 PSI
Maximum Pressure - 145 PSI
| Box Size | 8"X6"X6" |
|---|---|
| Country of Origin | USA |
| Finish | Matte |
| Material | Aluminum |
| Package Quantity | 1 |
| Connections | 1 qty Delivery Ports - 1/4" PT 1 qty Supply (inlet) Ports - 1/8" PT 1 qty Control Ports - 1/8" PT 1 qty Exhaust Port - 1/4" PT |
| Duty | N/A |
| Flow C | N/A |
| Flow Rating | The automatic exhaust pressure is 40 PSI, Normal Pressure - 115 PSI |
| Function | The PP-7 push-pull control valve is a pressure sensitive, on/off control valve which will automatically return to the exhaust (button out) position when supply pressure is below the required minimum. |
| Operating Temperature Range | N/A |
| Operation | Push-pull control valve is a pressure sensitive, on/off control valve that automatically goes to the exhaust position when air pressure is below minimum pressure. |
| Power | N/A |
| Pressure | Maximum Pressure - 145 PSI |
| Product Line | Bendix |
| Replacement Parts | N/A |
| Voltage | N/A |
