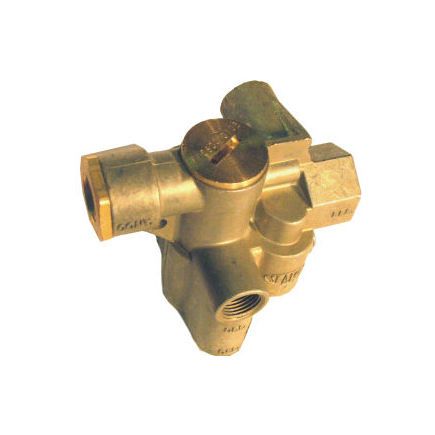

SPRING BRAKE VALVE - THIS VALVE RELEASES THE BRAKES BEFORE THE TANK IS FILLED.
Call to Order
SKU# 110800
The spring brake priority immediately provides supply air to release the spring brakes, the internal pressure protection valve opens to also fill the reservoir at approximately 80 PSI.
Spring Brake Control Valve: The spring brake priority immediately provides supply air to release the spring brakes, the internal pressure protection valve opens to also fill the reservoir at approximately 80 PSI.
3/8" Supply port
3/8" Control port size
1/2" Reservoir port size
3/8" Delivery port size
Designed for use with a single reservoir on a typical single or tandem axle trailer
May also be used with two 1,400 cubic inch (nominal) reservoirs on tandem axle trailers
Supplies air to release the spring brakes from the trailer air reservoir when available for faster release times
Direct replacement for Bendix's SR-5 spring brake control valve
| Box Size | 8"X6"X6" |
|---|---|
| Country of Origin | USA |
| Finish | Matte |
| Material | Aluminum/Brass |
| Package Quantity | 1 |
| Connections | 3/8" Supply port 3/8" Control port size 1/2" Reservoir port size 3/8" Delivery port size |
| Duty | N/A |
| Flow C | N/A |
| Flow Rating | N/A |
| Function | Designed for use with a single reservoir on a typical single or tandem axle trailer. May also be used with two 1,400 cubic inch (nominal) reservoirs on tandem axle trailers |
| Operating Temperature Range | N/A |
| Operation | The 110800 includes a relay feature that dramatically lowers the spring brake release times. This feature along with spring brake priority operation means much faster getaways. The built in control port prevents brake compounding. |
| Power | N/A |
| Pressure | 80 PSI Max |
| Product Line | Sealco |
| Replacement Parts | N/A |
| Voltage | N/A |
