DIRECTIONAL CONTROL VALVE
The 1 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It comes with a power beyond sleeve.
Directional Control Valve: The 1 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It comes with a power beyond sleeve.
Main Relief Setting 2000 PSI
Maximum Pressure 3500 PSI
Spool Action Power Up/Power Down
Maximum Flow Rate 30 GPM
Work Port Size 3/4" SAE
Inlet Port Size 3/4" SAE
Outlet Port Size 3/4" SAE
Built-in load checks to prevent reverse flow when shifting
Minimal leakage and smooth operation provided by precision-machined and ground spools
Has power beyond sleeve

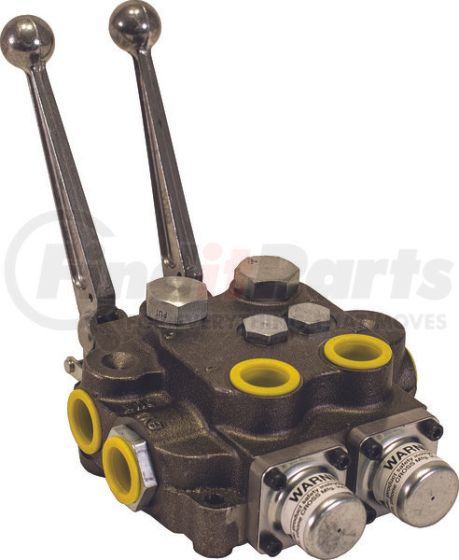

PLEASE NOTE: Picture is of valve for reference; the handles are an old way of operating it.
| Box Size | 12"X12"X7" |
|---|---|
| Country of Origin | USA |
| Function | The 1 Spool Directional Control Valve from Buyers Products is compact, precise, and reliable. It directs flow smoothly where and when you need it. It comes with a power beyond sleeve. |
| Electrically Operated | NO |
| Inlet Port Size | 3/4" |
| Main Relief Setting | 2000 PSI |
| Maximum Flow Rate | 30 GPM |
| Maximum Pressure | 3500 PSI |
| Outlet Port Size | 3/4" |
| Power Beyond | YES, INCLUDED |
| Spool Action | SINGLE |
| Work Port Size | 3/4" |
