AIR BAG (2B9-239)

$152.69
SKU# FS6902

The Air Bag (2B9-239) (SKU: FS6902), manufactured by Goodyear Tire and Rubber Company, brings an exceptional air ride to your trailer’s allowing for smoother rides and the ability to change your ride stiffness. The Air Bag will work directly with your suspension system to ensure for a comfortable and safe ride. Ranco.com Parts is a proud supplier of Goodyear parts, so be sure to check out all available Air Springs and Air Bag components on The Ranco.com Parts Store today!

This is a bellows style Goodyear air spring. Bellows air springs have one, two, or three convolutions in the flexible member. This double convoluted air bag is typically found on lift springs or axles for trucks and trailers, as an air ride spring, and also as an actuator or insulator on industrial and commercial applications.

With the crimped design, the end retainers are permanently attached by mechanically crimping the retainer around the built-in bead wire of the flexible member.

Air bags are used on trailers and trucks for the suspension system. The trucks air system supplies all the needed air for the bags to function properly. The most common bags are ride bags, steer axle ride bags, and drop axle lift bags. They function with the help of the air compressor on the truck, leveling valves, and pressure protection valves.

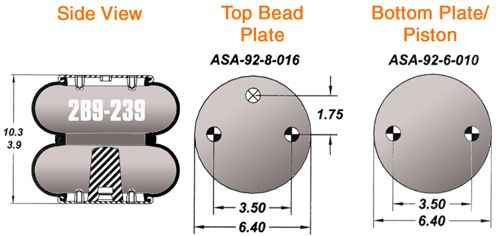

Specifications:

  • Top Plate Diameter: 6.4"
  • Bottom Plate Diameter: 6.4"
  • Collapsed Height: 3.9"





More Information
Length 6
Width 9
Height 6
