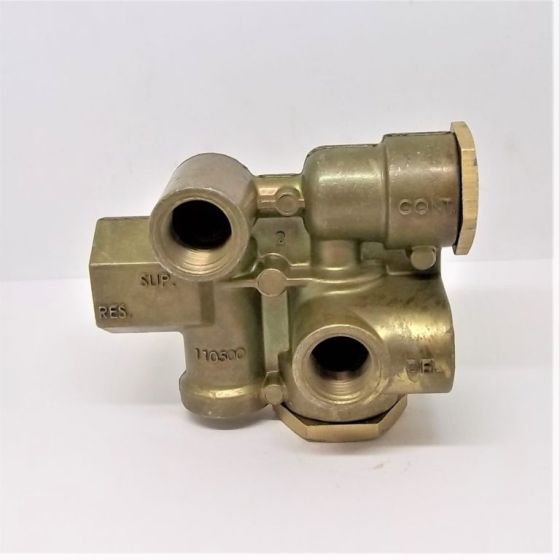

1/2" RESERVOIR PORT SPRING BRAKE CONTROL VALVE
The Sealco ½” Reservoir Port Spring Brake Control Valve (SKU:110500) serves as a pressure release for your commercial trailer’s spring brakes. This control valve vents excess pressure rapidly whenever the internal pressure of the spring brake system reaches 80 PSI or greater. This allows for the braking system to continue to function properly, without worrying about the possibility of overpressure in your system. Keep your system protected today with the ½” reservoir port spring brake control valve by Sealco. Don’t forget to order every other replacement part your trailer needs from our online store to order everything from one convenient place.
- 3/8" Supply port
- 3/8" Control port size
- 1/2" Reservoir port size
- 3/8" Delivery port size
- Designed for use with a single reservoir on a typical single or tandem axle trailer
½” Reservoir Port Spring Brake Control Valve: This pressure release valve replacement part for spring brake systems helps ensure the safety of your braking system by venting excess pressure out. No need to worry about pressure overload with this Sealco control valve in place. When your spring brake system reaches 80 PSI or greater, the control valve vents the excess pressure immediately, leaving some in an available reservoir. This pressure release valve has ⅜” supply, control, and delivery ports as well as a ½” reservoir port. The ½” reservoir port spring brake control valve system is your solution for a single reservoir system on a typical single or tandem axle trailer. Be sure to replace your spring brake control valves at the appropriate times to extend the lifetime of your construction trailer. Get back on the road, or stay on the road, to keep your business profitable. Shop other valves here as well.
Manufacturer Warranty: “Sealco Commercial Vehicle Products, Inc. (Sealco) warrants to the Purchaser that Sealco air valve products will be free from defects in material and workmanship under normal use and service for twenty-four (24) months from the manufacture date of the product. Sealco will, at its option, either repair, replace or credit the net purchase price of any Sealco air valve product that they find defective upon inspection. All air valve products involved in warranty requests must be returned for inspection with a Return Goods Authorization (RGA) Form.”
|Country of Origin||USA|
|Connections||3/8" Supply port 3/8" Control port size 1/2" Reservoir port size 3/8" Delivery port size|
|Flow Rating||Check valve cracks at 80 PSI.|
|Function||The spring brake priority immediately provides supply air to release the spring brakes, the internal pressure protection valve opens to also fill the reservoir at approximately 80 PSI.|
|Operating Temperature Range||N/A|
|Operation||Immediately provides the air supply to release the spring brakes; then at 80 psi. starts to refill the reservoir.|
|Pressure||Internal check valve cracks at 80 PSI|
