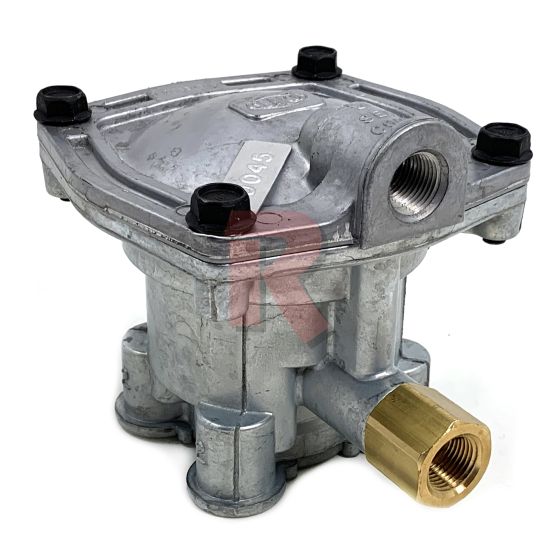

3/4" RESERVIOR 4-PORT SERVICE RELAY VALVE, 4.5 PSI

Call to Order
SKU# 110139

Do not use this valve on converter dollies, trailer turntable axles or lift axles due to the hard braking ratio feature.

Service Relay Valve: Do not use this valve on converter dollies, trailer turntable axles or lift axles due to the hard braking ratio feature.
  • 4 Delivery ports
  • 3/8" Auxillary supply port
  • 3/8" Control port size
  • 3/4" Reservoir port size
  • 3/8" Delivery port size
  • Nominal crack pressure of 4.5 PSI
  • More Information
    Box Size 12"X12"X7"
    Country of Origin USA
    Finish Matte
    Material Aluminum/Brass
    Package Quantity 1
    Connections 3/8" Auxillary supply port 3/8" Control port size 3/4" Reservoir port size 3/8" Delivery port size
    Duty N/A
    Flow C N/A
    Flow Rating Nominal crack pressure of 4.5 PSI
    Function Do not use this valve on converter dollies, trailer turntable axles or lift axles due to the hard braking ratio feature.
    Operating Temperature Range N/A
    Operation Service relay valve used to send air to the air brake system allowing the brakes to work. Has a hard braking ratio.
    Power N/A
    Pressure Nominal crack pressure of 4.5 PSI
    Product Line Sealco
    Replacement Parts N/A
    Voltage N/A
