AERO - SK2 ASSY W/24' TARP
AERO - SK2 ASSY W/24' TARP

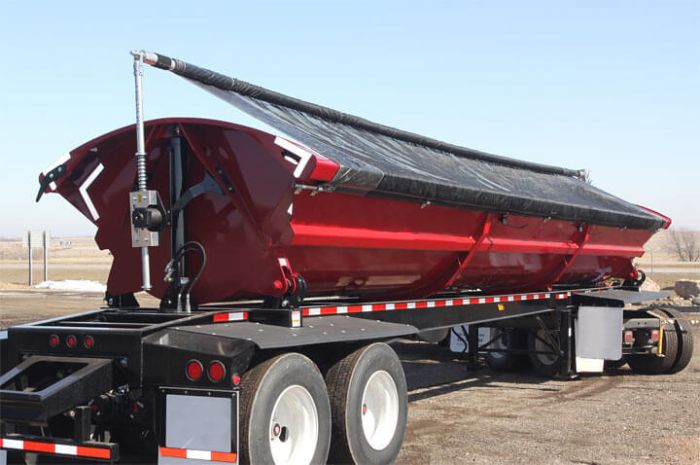

This is a tarp system kit that's used on the side dump trailers. Kit includes all the parts necessary to replace the tarp system on a trailer that has been dumped with the tarp covering the load.
AERO - SK2 ASSY W/24' TARP
This is a tarp system kit that's used on the side dump trailers. Kit includes all the parts necessary to replace the tarp system on a trailer that has been dumped with the tarp covering the load. The only hardware needed that's not included would be the tarp secure clamps, nylon grey plastic clamps for the 4" roll tube, tarp cradles for the side of the trailer mounted to tub, and none of the electrical is included either.
PLEASE NOTE: FOR SHIPPING THERE'S 2 BUNDLES: 1 PALLET OF PARTS, AND 1 BUNDLE OF ROLL TUBES. MUST BE SHIPPED LTL TRUCK FREIGHT.
TARP KIT INCLUDES
X1 1001-961703 AERO FRONT SWING ARM ASSY
X1 1001-961705 AERO REAR SWING ARM ASSY
X1 1001-961700 AERO FRONT SPRING BOX (WHITE SPRING)
X1 1001-961701 AERO REAR SPRING BOX (BLACK SPRING)
X2 1120913 TARP ROLL TUBE
X2 1700049 TARP SECURE PIPING (SMALL PIPES ON PASSENGER SIDE)
X1 1120911 TARP ROLL TUBE CENTER SPLICE – WELD/RIVET
X1 1126981 ROLL TUBE HARDWARE KIT (BOLTS/RIVETS)
X1 1120736 TARP ROLL TUBE REAR CONNECTOR
X1 12X24CRTARP TARP – 12’ X 24’ SIDE DUMP TARP
Length | 252 |
---|---|
Width | 30 |
Height | 17 |
