FEMALE PLUG, VERTICAL

FEMALE PLUG, VERTICAL

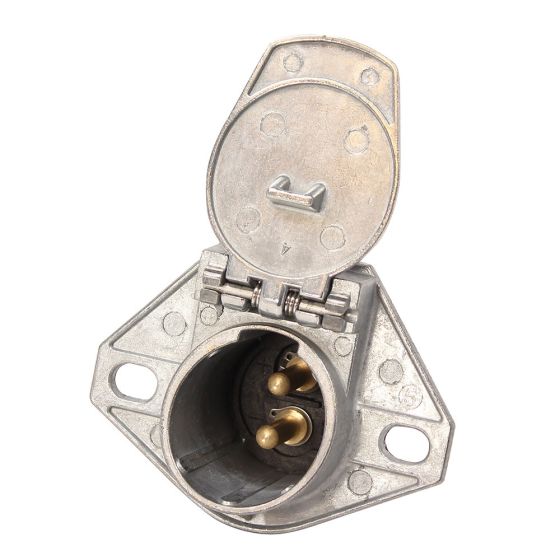

The vertical tarp receptacle is commonly used on the trailer side of the tarp wiring. The tarp power for the tarp system is wired into the receptacle. The receptacle has little set screws on the terminals to hold the wires onto them. The outside of the plug has a set screw to hold the insulated wires in place once installed; keeping the road vibrations and debris hitting the wiring from pulling the wires out of the terminals. This plug is a dual poled vertical plug; meaning that both poles are up/down from each other.

PLEASE NOTE: Whenever you're swapping one of these plugs out; it's imperative to take a picture of what color wire goes to what terminal in order to make sure it functions correctly once the new plug is wired up. If you're not familiar with how they are wired; the picture will help you wire it up correctly rather than pulling it apart and not knowing what color wire goes to what terminal.
